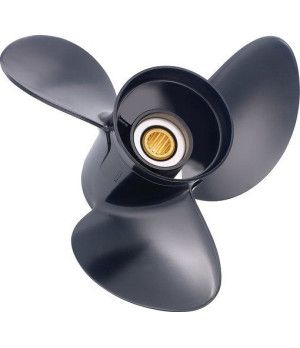

Aluminum Propeller AMITA3 9.30X11 Right Hand 2111-093-11

SOL2111-093-11
€118.25
Tax included
Three-blade aluminum propeller for small displacement outboard motor propulsion on vessels equipped with OMC, Johnson and Evinrude outboards. Compatible with over 490 models in the BE, BJ, E, HE, HJ, J, L, SE, SJ, TE and TJ ranges of 10 and 15 HP.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Order it before 11 hours y 50 minutes and receive it between Monday 21 September and Tuesday 22 September with UPS/DHL/TNT North America

Description

Function and Technical Context

The AMITA3 aluminum propeller with a diameter of 9.30 inches, pitch of 11 inches and right-hand rotation occupies the most critical position in the propulsion system: it is the element that directly transforms the rotational energy of the tail shaft into hydraulic thrust on the water. Its three-blade design is optimized for 9 HP outboard motors in the Johnson and Evinrude ranges, where the balance between diameter and pitch determines that the motor operates within the RPM range for which it was designed. An incorrect pitch propeller on these engines causes either over-stress of the bevel gear set due to insufficient load, or over-revving that accelerates wear of the bearings and oil seals of the shaft. Manufacturing in aluminum alloy offers an appropriate stiffness-to-weight ratio for small vessels in coastal, river and inland waters, being the direct replacement reference for parts identified as 0174817 and 0778773 in the BRP EPC catalog.

When to Replace This Part?

The most reliable symptoms indicating that the propeller has reached the end of its service life are: perceptible vibration in the shaft or on the transom at any rotation speed, notable reduction in planing speed or inability to achieve the planing point with the usual load, and excessive cavitation visible in the wake along with loss of throttle response. Aluminum blades are especially vulnerable to dents, bends and micro-cracks after contact with sandy bottoms, rocks or fouled lines; even a small deformation on the leading edge alters the effective pitch and generates dynamic imbalance that subjects the damping bushing, lip seal and propeller shaft to stresses beyond design limits. Detailed visual inspection is recommended at the beginning and end of each boating season, and immediate replacement upon any structural deformation: timely intervention prevents a low-cost propeller damage from resulting in repair of the lower gearcase of the outboard.



Compatible Johnson/Evinrude Engines

SeriesModels
BE10BE10EEDD 1996, BE10ELEDD 1996, BE10FDLECM 1998, BE10FDLEDR 1996, BE10FDLEUA 1997, BE10FPXEDC 1996, BE10FPXEUR 1997, BE10FRELDR 1996, BE10FRELUA 1997, BE10REDD 1996, BE10RELEDD 1996, BE10RELEUS 1997, BE10RLEDD 1996, BE10SELEDD 1996
BE15BE15EEDS 1996, BE15ELEDS 1996, BE15FAEDR 1996, BE15FAEUA 1997, BE15FDLECM 1998, BE15FDLEDR 1996, BE15FDLEUA 1997, BE15FKEDR 1996, BE15FKEUA 1997, BE15FREDR 1996, BE15FRELEDR 1996, BE15FRELUA 1997, BE15FREUA 1997, BE15FWECA 1998, BE15FWEDC 1996, BE15FWEUR 1997, BE15FWLECA 1998, BE15FWLEDC 1996, BE15FWLEUR 1997, BE15REDS 1996, BE15RELEUC 1997, BE15RLEDS 1996
BJ10BJ10EEDD 1996, BJ10ELEDD 1996, BJ10FDLECM 1998, BJ10FDLEDR 1996, BJ10FDLEUA 1997, BJ10FPXEDC 1996, BJ10FPXEUR 1997, BJ10FRELDR 1996, BJ10FRELUA 1997, BJ10REDD 1996, BJ10RELEDD 1996, BJ10RELEUS 1997, BJ10RHLSOR, BJ10RHSOR, BJ10RLEDD 1996, BJ10SELEDD 1996
BJ15BJ15EEDS 1996, BJ15ELEDS 1996, BJ15FAEDR 1996, BJ15FAEUA 1997, BJ15FDLECM 1998, BJ15FDLEDR 1996, BJ15FDLEUA 1997, BJ15FKEDR 1996, BJ15FKEUA 1997, BJ15FREDR 1996, BJ15FRELEDR 1996, BJ15FRELUA 1997, BJ15FREUA 1997, BJ15FWECA 1998, BJ15FWEDC 1996, BJ15FWEUR 1997, BJ15FWLECA 1998, BJ15FWLEDC 1996, BJ15FWLEUR 1997, BJ15REDS 1996, BJ15RELEUC 1997, BJ15RLEDS 1996
E10E10EBL4EEB 1999, E10ECCD 1988, E10ECES 1989, E10EECC 1998, E10EEDD 1996, E10EEIR 1991, E10EENA 1992, E10EESC 1990, E10EEUS 1997, E10EL4EEB 1999, E10EL4SID 4-stroke, elec start, remote, 20 in shaft 2001, E10EL4SSE 4-Stroke, Elec. Start, 20 IN shaft 2000, E10ELCCD 1988, E10ELCES 1989, E10ELECC 1998, E10ELEDD 1996, E10ELEIR 1991, E10ELENA 1992, E10ELESC 1990, E10ELEUS 1997, E10EVL4SIC 4-stroke, elec start, 20 in shaft, wht 2001, E10EVL4SSS 4-Stroke, Elec. Start, 20 IN shaft, wht 2000, E10FEXECM 1998, E10FEXEDR 1996, E10FEXEO 1995, E10FEXEUA 1997, E10FRECM 1998, E10FREDR 1996, E10FRELECM 1998, E10FRELEDR 1996, E10FRELEOC 1995, E10FRELEUA 1997, E10FREOC 1995, E10FREUA 1997, E10FRLECM 1998, E10FRLEDR 1996, E10FRLEO 1995, E10FRLEUA 1997, E10R4EEB 1999, E10R4SID 4-stroke, rope start, tiller, 15 in shaft 2001, E10R4SSE 4-Stroke, Rope Start, Tiller, 15 IN shaft 2000, E10RCCD 1988, E10RCES 1989, E10RECC 1998, E10REDD 1996, E10REIR 1991, E10RELECC 1998, E10RELEDD 1996, E10RELEIR 1991, E10RELENA 1992, E10RELESC 1990, E10RELEUS 1997, E10RENA 1992, E10RESC 1990, E10REUS 1997, E10RL4EEB 1999, E10RL4SID 4-stroke, rope start, tiller, 20 in shaft 2001, E10RL4SSE 4-Stroke, Rope Start, Tiller, 20 IN shaft 2000, E10RLCCD 1988, E10RLCES 1989, E10RLECC 1998, E10RLEDD 1996, E10RLEIR 1991, E10RLENA 1992, E10RLESC 1990, E10RLEUS 1997, E10RV4SIC 4-stroke, rope start, tiller, 15 in shaft, wht 2001, E10RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000, E10RVL4SIC 4-stroke, rope start, tiller, 20 in shaft, wht 2001, E10RVL4SSS 4-Stroke, Rope Start, Tiller, 20 IN shaft, wht 2000, E10SELCCD 1988, E10SELCES 1989, E10SELECC 1998, E10SELEDD 1996, E10SELEIR 1991, E10SELENA 1992, E10SELESC 1990, E10SELEUS 1997, E10TEX4EEB 1999, E10TEX4SID 4-stroke, elec start, tiller, 25 in shaft 2001, E10TEX4SSE 4-Stroke, Elec. Start, Tiller, 25 IN shaft 2000, E10TVX4SIC 4-stroke, elec start, tiller, 25 in shaft, wht 2001, E10TVX4SSS 4-Stroke, Elec. Start, Tiller, 25 IN shaft, wht 2000
E15E15DLEOC 1995, E15EBL4EEB 1999, E15ECCS 1988, E15ECEC 1989, E15EECR 1998, E15EEDS 1996, E15EEIA 1991, E15EENM 1992, E15EESR 1990, E15EEUC 1997, E15EL4EEB 1999, E15EL4SID 4-stroke, elec start, 20 in shaft 2001, E15EL4SSE 4-Stroke, Elec. Start, 20 IN shaft 2000, E15ELCCS 1988, E15ELCEC 1989, E15ELECR 1998, E15ELEDS 1996, E15ELEIA 1991, E15ELENM 1992, E15ELESR 1990, E15ELEUC 1997, E15EVL4SIC 4-stroke, elec start, 20 in shaft, wht 2001, E15EVL4SSS 4-Stroke, Elec. Start, 20 IN shaft, wht 2000, E15FKEDR 1996, E15FKEUA 1997, E15FRECM 1998, E15FREDR 1996, E15FRELECM 1998, E15FRELEDR 1996, E15FRELEUA 1997, E15FREOC 1995, E15FREUA 1997, E15FRLECM 1998, E15FRLEDR 1996, E15FRLEOC 1995, E15FRLEUA 1997, E15KEOC 1995, E15R4EEB 1999, E15R4SID 4-stroke, rope start, 15 in shaft 2001, E15R4SSE 4-Stroke, Rope Start, Tiller, 15 IN shaft 2000, E15RB4EEB 1999, E15RBL4EEB 1999, E15RCCS 1988, E15RCEC 1989, E15RECR 1998, E15REDS 1996, E15REIA 1991, E15RELECR 1998, E15RELEDS 1996, E15RELEIA 1991, E15RELENM 1992, E15RELESR 1990, E15RELEUC 1997, E15RENM 1992, E15RESR 1990, E15REUC 1997, E15RL4EEB 1999, E15RL4SID 4-stroke, rope start, 20 in shaft 2001, E15RL4SSE 4-Stroke, Rope Start, Tiller, 20 IN shaft 2000, E15RLCCS 1988, E15RLCEC 1989, E15RLECR 1998, E15RLEDS 1996, E15RLEIA 1991, E15RLENM 1992, E15RLESR 1990, E15RLEUC 1997, E15RV4SIC 4-stroke,rope start, 15 in shaft, wht 2001, E15RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000, E15RVL4SIC 4-stroke, elec start, 15 in shaft, wht 2001, E15RVL4SSS 4-Stroke, Rope Start, Tiller, 20 IN shaft, wht 2000, E15WREES 1999, E15WRLEES 1999, E15WRLSIR commercial, rope start, tiller, 20 in shaft 2001, E15WRLSSC Commercial, Rope Start, Tiller, 20 IN shaft 2000, E15WRSIR commercial, rope start, tiller, 15 in shaft 2001, E15WRSSC Commercial, Rope Start, Tiller, 15 IN shaft 2000
HE15HE15KCF 1997, HE15KCLF 1997, HE15KCLN 1996, HE15KCLO 1998, HE15KCN 1996, HE15KCO 1998, HE15RPLW 1997, HE15RPW 1997
HJ15HJ15KCF 1997, HJ15KCLF 1997, HJ15KCLN 1996, HJ15KCLO 1998, HJ15KCN 1996, HJ15KCO 1998, HJ15RPLW 1997, HJ15RPW 1997
J10J10ECCD 1988, J10ECES 1989, J10EECC 1998, J10EEDD 1996, J10EEIR 1991, J10EENA 1992, J10EESC 1990, J10EEUS 1997, J10ELCCD 1988, J10ELCES 1989, J10ELECC 1998, J10ELEDD 1996, J10ELEER 1999, J10ELEIR 1991, J10ELENA 1992, J10ELESC 1990, J10ELEUS 1997, J10ELSIM elec start, remote, 20 in shaft 2001, J10ELSSA Electric Start, 15 IN. shaft 2000, J10EVLSIC elec start, 20 in shaft, wht 2001, J10EVLSSS Electric Start, 20 IN. shaft, wht 2000, J10FEXECM 1998, J10FEXEDR 1996, J10FEXEO 1995, J10FEXEUA 1997, J10FRECM 1998, J10FREDR 1996, J10FRELECM 1998, J10FRELEDR 1996, J10FRELEOC 1995, J10FRELEUA 1997, J10FREOC 1995, J10FREUA 1997, J10FRLECM 1998, J10FRLEDR 1996, J10FRLEO 1995, J10FRLEUA 1997, J10RCCD 1988, J10RCES 1989, J10RECC 1998, J10REDD 1996, J10REER 1999, J10REIR 1991, J10RELECC 1998, J10RELEDD 1996, J10RELEIR 1991, J10RELENA 1992, J10RELESC 1990, J10RELEUS 1997, J10RENA 1992, J10RESC 1990, J10REUS 1997, J10RGTSIC elec start,15 in shaft, wht 2001, J10RGTSSS Rope Start, Tiller, 15 IN. shaft, N/A USA 2000, J10RLCCD 1988, J10RLCES 1989, J10RLECC 1998, J10RLEDD 1996, J10RLEER 1999, J10RLEIR 1991, J10RLENA 1992, J10RLESC 1990, J10RLEUS 1997, J10RLGTSIC elec start,20 in shaft, wht 2001, J10RLGTSSS Rope Start, Tiller, 20 IN. shaft, N/A USA 2000, J10RLSIM rope start, tiller, 20 in shaft 2001, J10RLSOS, J10RLSSA Rope Start, Tiller, 20 IN. shaft 2000, J10RSIM rope start, tiller, 15 in shaft 2001, J10RSOS, J10RSSA Rope Start, Tiller, 15 IN. shaft 2000, J10RVLSIC rope start, tiller, 20 in shaft, wht 2001, J10RVLSSS Rope Start, Tiller, 20 IN. shaft, wht 2000, J10RVSIC rope start, tiller, 15 in shaft, wht 2001, J10RVSSS Rope Start, Tiller, 15 IN. shaft, wht 2000, J10SELCCD 1988, J10SELCES 1989, J10SELECC 1998, J10SELEDD 1996, J10SELEIR 1991, J10SELENA 1992, J10SELESC 1990, J10SELEUS 1997, J10TEEER 1999, J10TEGSSS Electric Start, Tiller, 15 IN. shaft, N/A USA 2000, J10TEGTSIC elec start, tiller, 15 in shaft, wht 2001, J10TELEER 1999, J10TELSIM elec start, tiller, 20 in shaft 2001, J10TELSSA Electric Start, Tiller, 20 IN. shaft 2000, J10TESIM elec start, tiller, 15 in shaft 2001, J10TESSA Electric Start, Tiller, 15 IN. shaft 2000, J10TVESIM elec start, tiller, 15 in shaft, wht 2001
J15J15DLEOC 1995, J15ECCS 1988, J15ECEC 1989, J15EECR 1998, J15EEDS 1996, J15EEIA 1991, J15EENM 1992, J15EESR 1990, J15EEUC 1997, J15ELCCS 1988, J15ELCEC 1989, J15ELECR 1998, J15ELEDS 1996, J15ELEEA 1999, J15ELEIA 1991, J15ELENM 1992, J15ELESR 1990, J15ELEUC 1997, J15ELSIB elec start, remote, 20 in shaft 2001, J15ELSSM Electric Start, 20 IN. shaft 2000, J15EVLSIC elec start, remote, 20 in shaft, wht 2001, J15EVLSSS Electric Start, 20 IN. shaft, wht 2000, J15FKEDR 1996, J15FKEUA 1997, J15FRECM 1998, J15FREDR 1996, J15FRELECM 1998, J15FRELEDR 1996, J15FRELEUA 1997, J15FREOC 1995, J15FREUA 1997, J15FRLECM 1998, J15FRLEDR 1996, J15FRLEOC 1995, J15FRLEUA 1997, J15KEOC 1995, J15RCCS 1988, J15RCEC 1989, J15RECR 1998, J15REDS 1996, J15REEA 1999, J15REIA 1991, J15RELECR 1998, J15RELEDS 1996, J15RELEIA 1991, J15RELENM 1992, J15RELESR 1990, J15RELEUC 1997, J15RENM 1992, J15RESR 1990, J15REUC 1997, J15RLCCS 1988, J15RLCEC 1989, J15RLECR 1998, J15RLEDS 1996, J15RLEEA 1999, J15RLEIA 1991, J15RLENM 1992, J15RLESR 1990, J15RLEUC 1997, J15RLSIB rope start, tiller, 20 in shaft 2001, J15RLSOC, J15RLSSM Rope Start, Tiller, 20 IN. shaft 2000, J15RSIB rope start, tiller, 15 in shaft 2001, J15RSOC, J15RSSM Rope Start, Tiller, 15 IN. shaft 2000, J15RTSOS, J15RVLSIC rope start, tiller, 20 in shaft, wht 2001, J15RVLSSS Rope Start, Tiller, 20 IN. shaft, wht 2000, J15RVSIC rope start, tiller, 15 in shaft, wht 2001, J15RVSSS Rope Start, Tiller, 15 IN. shaft, wht 2000, J15TEEEA 1999, J15TELEEA 1999, J15TELSIB elec start, tiller, 20 in shaft 2001, J15TELSSM Electric Start, Tiller, 20 IN. shaft 2000, J15TESIB elec start, tiller, 15 in shaft 2001, J15TESSM Electric Start, Tiller, 15 IN. shaft 2000, J15TVESIB elec start, tiller, 15 in shaft, wht 2001, J15WREES 1999, J15WRLEES 1999, J15WRLSIR commercial, rope start, tiller, 20 in shaft 2001, J15WRLSOB, J15WRLSSC Commercial, Rope Start, Tiller, 20 IN shaft 2000, J15WRSIR commercial, rope start, tiller, 15 in shaft 2001, J15WRSOB, J15WRSSC Commercial, Rope Start, Tiller, 15 IN shaft 2000
L10L10FRELECM 1998, L10FRELEDR 1996, L10FRELEUA 1997
Otros8/9.9HP (4 Stroke), 9.9/15HP (2 Stroke) 1993-Current, 9.9/15HP (4 Stroke - 305cc) 1995-2001
SE10SE10RPB 1996, SE10RPLB 1996, SE10RPLT 1997, SE10RPLY 1998, SE10RPT 1997, SE10RPY 1998
SE15SE15BAECA 1998, SE15BAEDC 1996, SE15BAEEM 1999, SE15BAEUR 1997, SE15BASIR rope start, tiller, 15 in shaft, n/a usa 2001, SE15BASSB Rope Start, Tiller, 15 IN. shaft, N/A USA 2000, SE15RPC 1998, SE15RPG 1996, SE15RPLC 1998, SE15RPLG 1996, SE15RPLW 1997, SE15RPW 1997
SJ10SJ10REDD 1996, SJ10RLEDD 1996, SJ10RPB 1996, SJ10RPLB 1996, SJ10RPLT 1997, SJ10RPLY 1998, SJ10RPT 1997, SJ10RPY 1998, SJ10SELEDD 1996
SJ15SJ15BAECA 1998, SJ15BAEDC 1996, SJ15BAEEM 1999, SJ15BAEUR 1997, SJ15REDS 1996, SJ15RLEDS 1996, SJ15RPC 1998, SJ15RPG 1996, SJ15RPLC 1998, SJ15RPLG 1996, SJ15RPLW 1997, SJ15RPW 1997, SJ15RTEEM 1999, SJ15RTSIR rope start, tiller, 15 in shaft, n/a usa 2001, SJ15RTSSB Rope Start, Tiller, 15 IN. shaft, N/A USA 2000
TE10TE10ELCES 1989, TE10ELESC 1990, TE10RELEIR 1991, TE10RELENA 1992, TE10RELESC 1990, TE10RLCES 1989, TE10RLESC 1990
TE15TE15RLCEC 1989
TJ10TJ10ELCES 1989, TJ10ELESC 1990, TJ10RELEIR 1991, TJ10RELENA 1992, TJ10RELESC 1990, TJ10RLCES 1989, TJ10RLESC 1990
TJ15TJ15RLCEC 1989



Equivalent Manufacturer References

Manufacturer/BrandReference/Part Number
OMC / Johnson / Evinrude174817, 778773, 0778773 ✓ (actual)
