Cathodic protection for MerCruiser Bravo One, Bravo Two, Bravo Three, Bravo X and Bravo XR series engines. Electrochemical sacrifice against corrosion in salt water and trim systems.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

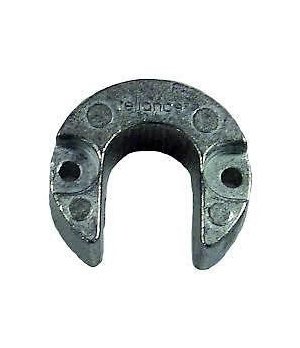

ANODE ARM TRIM BRAVO ALUMINUM 806190A1
CM806190A
€12.95
Tax included
Cathodic protection for MerCruiser Bravo One, Bravo Two, Bravo Three, Bravo X and Bravo XR series engines. Electrochemical sacrifice against corrosion in salt water and trim systems.
Description
The aluminum anode for the Bravo trim arm is an essential cathodic protection component in marine propulsion systems. Its primary function is to sacrifice itself electrochemically to protect the metal parts of the motor and trim unit against galvanic corrosion caused by exposure to salt water and electrolytic processes inherent to the marine environment.
This anode is designed specifically for the geometry and amperage requirements of the trim arm on Mercruiser Bravo series engines, ensuring consistent protection and predictable component life.
Engine Compatibility
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | BRAVO ONE | 0W250000 & Up / 0M100001 THRU 0W249999 |
| MerCruiser | BRAVO THREE | 0W250000 & Up / 0M100001 THRU 0W249999 |
| MerCruiser | BRAVO TWO | 0W250000 & Up / 0M100001 THRU 0W249999 |
| MerCruiser | BRAVO X FOUR S | 0W250000 & Up |
| MerCruiser | BRAVO X ONE | 0M100001 THRU 0W249999 / 0W250000 & Up |
| MerCruiser | BRAVO X THREE | 0M100001 THRU 0W249999 / 0W250000 & Up |
| MerCruiser | BRAVO X TWO | 0M100001 THRU 0W249999 / 0W250000 & Up |
| MerCruiser | BRAVO XR ONE | 0L914990 THRU 0W239999 / 0W240000 & Up |
| MerCruiser | BRAVO XR SPORT | 0M970842 & Up |
| MerCruiser | BRAVO XR SPORTMASTER | 0M052945 THRU 0M906877 / 0M906878 & Up |
| MerCruiser | BRAVO XR THREE | 0W240000 & Up |
| MerCruiser | BRAVO XZ ONE | 0L914990 THRU 0M999999 |
| MerCruiser | HI PERFORMANCE TRANSOM | 0W150003 & Up |
| MerCruiser | INTEGRATED TRANSOM | ALL THRU 0M052767 / 0M052768 & Up |
| MerCruiser | QS ALPHA ONE | 2A629407 & Up |
| MerCruiser | QS Bravo I-III | 2A792421 & Up |
| MerCruiser | VAZER DRIVE | 0W995000 & Up |
| MerCruiser | VAZER TRANSOM | 0W755000 & Up |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| MerCruiser | CM806190A, 806189Q1, 806189T1, 806190Q1, 97-806190Q1, 97-806190T1 |
Related spare parts for your MerCruiser
- Mercruiser Alpha One Gen 2 Bellows Kit 816431A1 18654A1 4639Q02 27-94996Q2Fuelles Cola
- Transom Alpha One Gen 1 and 2 Gasket Kit 27-94996Q2Despiece Transom Alpha One Gen 1 y 2
- Screw with Retainer 8M0058389Despiece Cola Alpha One Gen 1 - Inferior
- Oil Plug Gasket 12-191833Despiece Cola Alpha One Gen 1 - Superior
- Circlip 53-87843 RM53-87843Despiece Cabezal Alpha One Gen 1
Product Details
CM806190A
Specific References
